Aylesbury Town Engine Shed

Construction, Drawings and Photos by David Lane

Those unfamiliar with Aylesbury the station and engine shed had quite a varied development, the shed opened as a GWR single road broad gauge shed and following extensions and rebuilding with a saw tooth roof ended up as a two road shed in the 1890s. With ownership being shared with the Great Western, Great Central and Metropolitan.

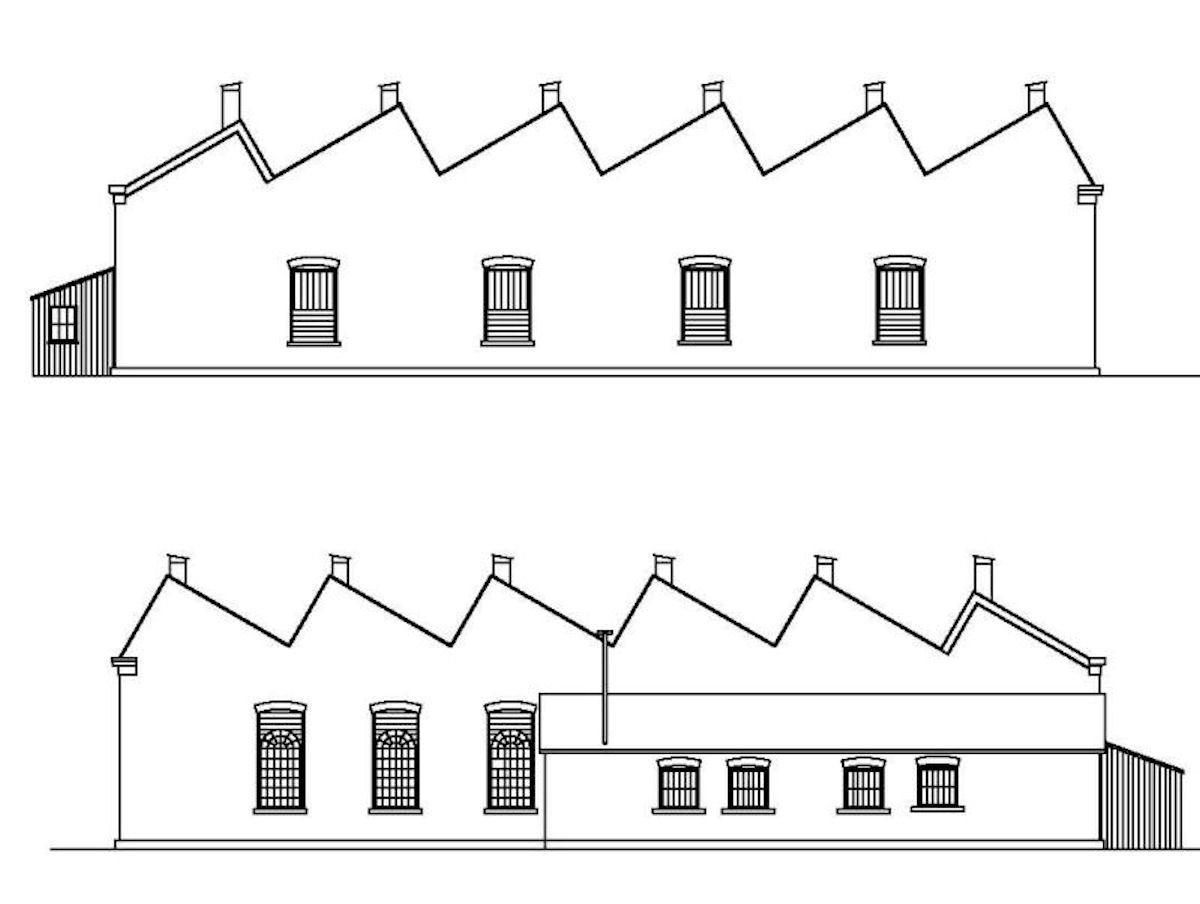

Engine Shed Side Elevation Drawing

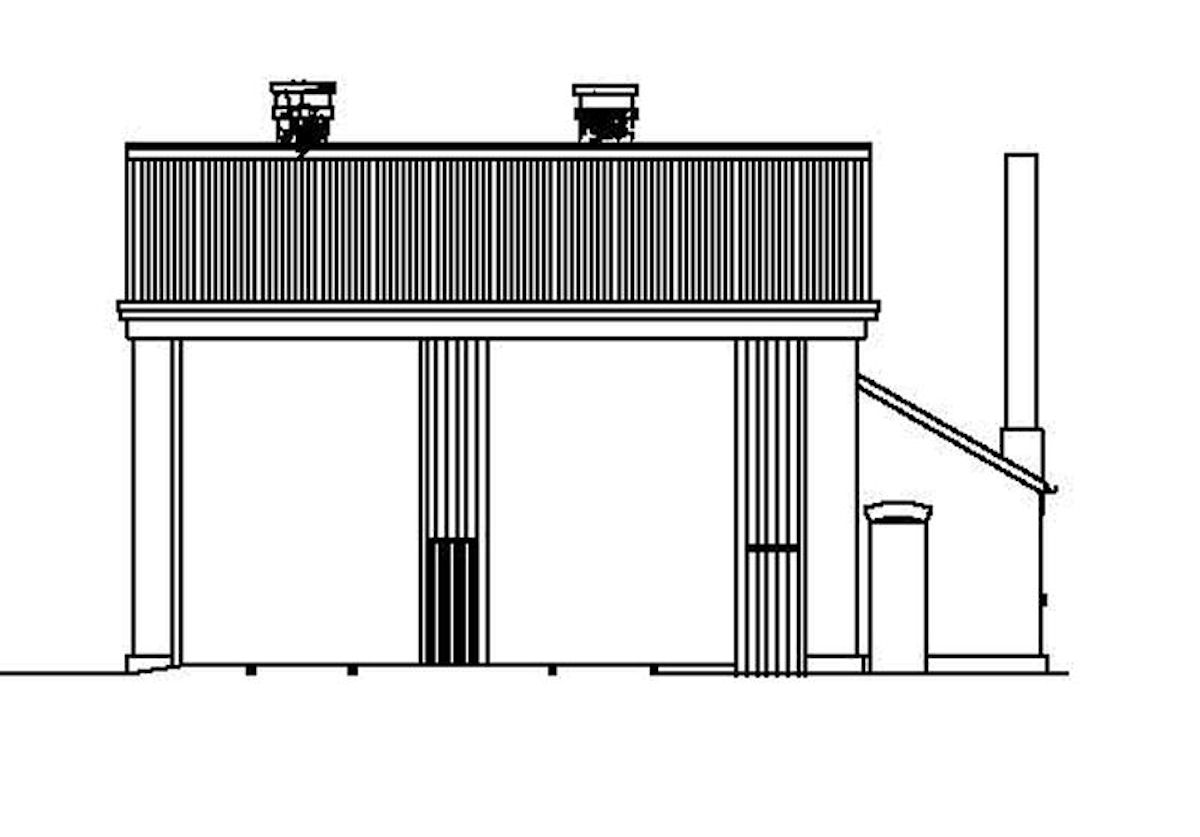

Engine Shed Front Elevation Drawing

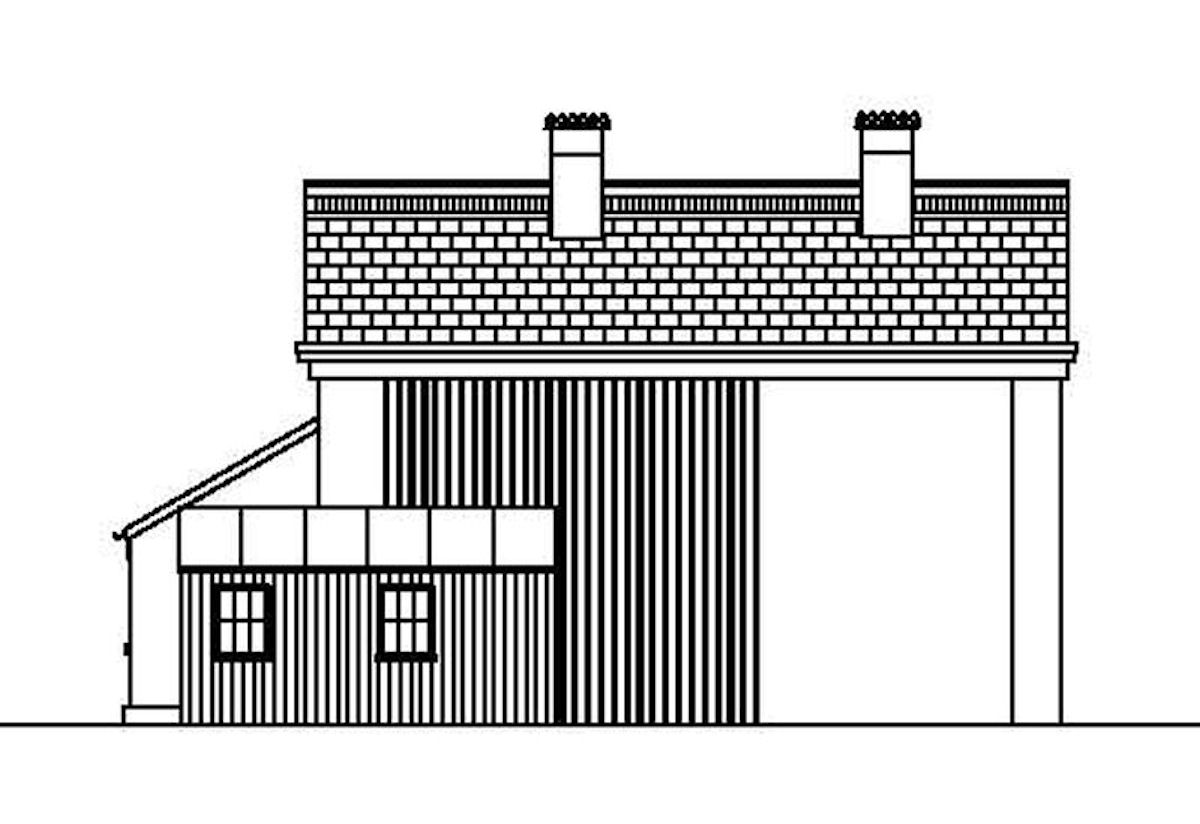

Engine Shed Rear Elevation Drawing
